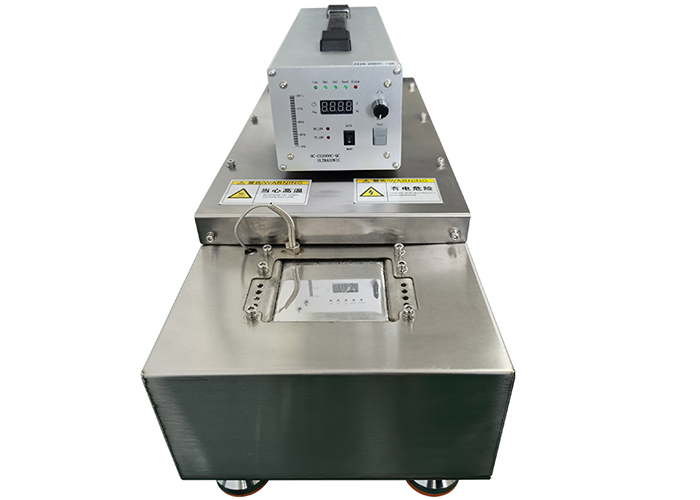

Ultrasonic Silver Copper Wire Bundle Tin Coating Welding Machine
Description:
Ultrasonic Silver Copper Wire Bundle Tin Coating Welding Machine applies ultrasonic waves to tin solution, which generates high-frequency vibrations of more than 20000 times per second and causes cavitation effect; Once metal workpieces that require surface tinning or parallel welding are immersed in tin solution, the oxide layer on the surface of the workpiece will be peeled off and removed, and gap air will be released, thereby making the tin solution more evenly and firmly adhere to the surface of the metal workpiece.
The process of soldering does not require the use of flux, which improves the solderability and ductility of the metal; The parts of the workpiece that need to be tinned only need to be directly immersed in the tin bath for 3-10 seconds.
Commonly used for surface treatment and welding of metal parts in industries such as electronics, electrical, automotive, and new energy, such as silver, copper, nickel, aluminum wire harnesses, wire lugs, and sheet metal, such as tin coating or parallel welding.
Parameters:
| Model | FST-2020-GL |
| Name | 20Khz Ultrasonic Dip Soldering Equipment
|
| Frequency | 20Khz |
| Power | 1000w |
| Input Voltage | 220V±10%,50/60Hz |
| Working Mode | Intermittent or Continuous working |
| Temperature Range | 200 -400℃ |
| Application | Tin, Indium, Silver, Copper, Nickel, Aluminum Wires. |
Advantages:
1. Green and environmentally friendly soldering solution
a. Not using soldering flux effectively avoids the generation of harmful gases.
b. Eliminate the process of pre cleaning the material surface to avoid the treatment of wastewater afterwards.
2. Achieve perfect soldering
a. If flux is used during soldering, tiny pores will be generated inside the solder. If the process technology is not strictly controlled, problems such as cracks, peeling, virtual soldering, and ablation may occur during the use of the solder. However, the ultrasonic tinning process does not use soldering flux, and the vibration energy allows the solder to penetrate very small gaps, without producing tiny bubbles or pores inside the solder, thus achieving a dense bond between the solder and the welding material body.
b. To avoid the corrosive nature of various fluxes that may affect the welding quality and lifespan.
Ultrasonic Silver Copper Wire Bundle Tin Coating Welding Machine
